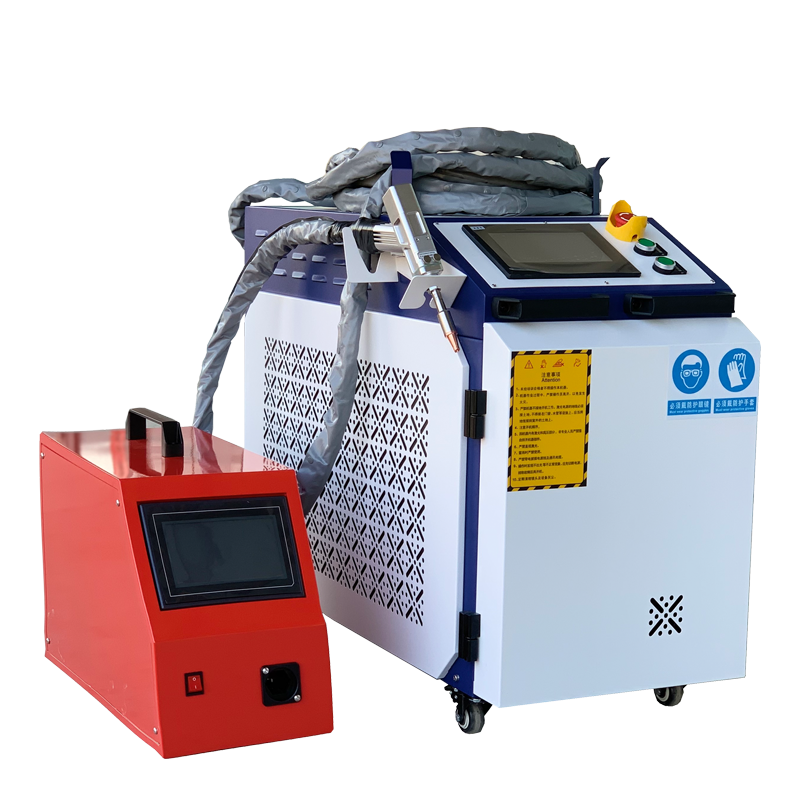

Honorfuture one laser welding machine can do laser welding, laser cleaning and handheld metal cutting together.
No need to buy several laser machines for these different laser process jobs.
Our laser system is very suitable for stainless steel & aluminum alloy welding, also can do welding on carbon steel, titanium alloy and etc.
Also it can be used for rusty removal and handheld metal cutting.
Specification:
Laser System | HFW1000 / HFW1500 / HFW2000 /HFW3000 |
Laser Type | 1064nm Fiber Laser |
Laser Power | 1000W 1500W 2000W 3000W |
Fiber length | 10m / 15m |
Cooling System | Water Cooling |
Laser source | BWT/RECI/MAX/Raycus |
Laser head | Single/ Dual Axis |
Speed range of welder | 0~120 mm/s |
Focal Spot Diameter | 0.5mm |
Ambient temperature | 10~40℃ |
Environmental humidity | <70% without condensation |
Welding thickness | 0.5-8mm |
Welding gap reguiramants | ≤1.2mm |
Operating Voltage | 220V±5% AC, 50/60Hz;380V±5% AC, 50/60Hz; |
* 3 years quality guaranty,the machine with main parts(excluding the consumables) shall be changed or repair free of charge if there is any problem during the warranty period. Laser is 2 years.
* Free training course at our plant.
* Lifetime maintenance free of charge.
* We will provide the consumable parts at an agency price when you need replacement.
* 24 hours on line service each day, free technical support.
* Our staff can be sent to your company to install or adjust if necessary.
Pre-sale services
* Provide the free consultation of the equipment .
* Provide the standard device and the flow chart.
* According to the clients’ special requirement, offering the reasonable plan and free design helping to select the equipment.
Service during the sales
* Inspect the machine before leaving the factory.
* Oversea install and debug the equipment
* Train the first-line operator.
No wearing part. Free maintaining, no need to adjust the laser path.
