High automation and reduced costs

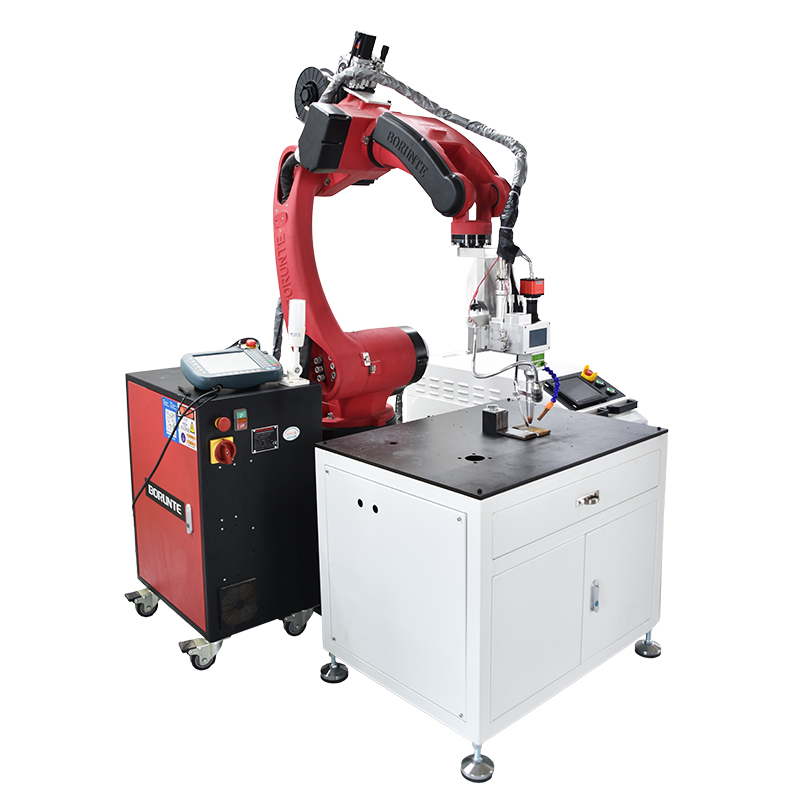

The six-axis robot can complete welding and automatic handling, replacing manual labor;
The robot is flexible and compatible. By replacing specific tooling and programs, different products can be welded.
Real-time monitoring and safety protection
Optional high speed galvanometer lens, galvanometer optional CCD coaxial monitoring, convenient for observing welding effects.
The robot's operating range can be equipped with a safety fence to effectively ensure the safety of staff.
Wide range of applications

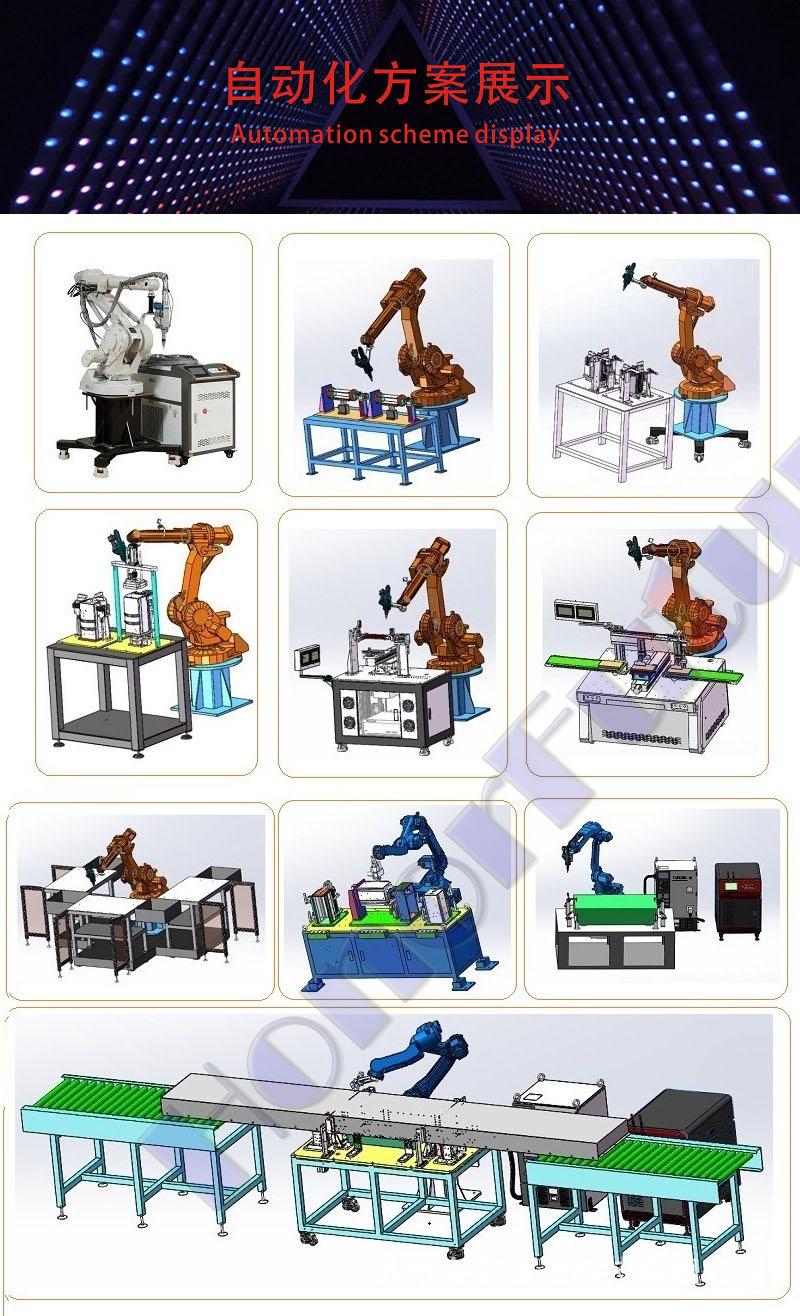

Widely used in automated production lines, power batteries, kitchenware, bathware, automotive
parts, precision parts and hardware, sheet metal products for automated welding.
Some Robot models for reference.
Model | Arm length (mm) | Maximum speed（°/s） | Maximum range of motion（°/mm） | Standard beat（s） | Repeat positioning accuracy (mm) | Maximum load (KG) | Net weight (KG) | Power Capacity (KVA) | ||||||
J1 | J2 | J3 | J4 | J1 | J2 | J3 | J4 | |||||||
BRTIRSC0603A | 400 | 600 | 600 | 1300 | 600 | ±125° | ±125° | 0-150mm | ±360° | 0.5 | ±0.02 | 3 | 20 | 1.04 |
Model | Arm length (mm) | Maximum speed（°/s） | Maximum range of motion（°） | Repeat positioning accuracy (mm) | Maximum load (KG) | Net weight (KG) | Power Capacity (KVA) | ||||||
J1 | J2 | J3 | J4 | J1 | J2 | J3 | J4 | ||||||
BRTIRPZ1508A | 1500 | 180 | 150 | 250 | 360 | ±170 | 30/-60 | 40/-70 | ±360 | ±0.08 | 8 | 140 | 2.8 |
BRTIRPZ2050A | 2000 | 120 | 105 | 180 | 300 | ±160 | 25/-65 | 25/-50 | ±360 | ±0.1 | 50 | 610 | 14.8 |
BRTIRPZ3013A | 3000 | 85 | 105 | 105 | 225 | ±175 | 40/-85 | 30/-60 | ±360 | ±0.2 | 130 | 1100 | 26.5 |
Model | Arm length (mm) | Maximum speed（°/s） | Maximum range of motion（°） | Repeat positioning accuracy (mm) | Maximum load (KG) | Net weight (KG) | Power Capacity (KVA) | ||||||||||
J1 | J2 | J3 | J4 | J5 | J6 | J1 | J2 | J3 | J4 | J5 | J6 | ||||||
BRTIRSC0603A | 700 | 320 | 360 | 360 | 405 | 360 | 450 | ±170° | ±100° | 60/120° | ±180° | ±115° | ±360° | ±0.03 | 7 | 60 | 3.12 |
BRTIRUS0805A | 940 | 266 | 297 | 300 | 333 | 500 | 500 | ±180° | 90/－100° | 95/-80° | ±180° | ±120° | ±360° | ±0.05 | 5 | 73 | 2.8 |
BRTIRUS1510A | 1500 | 125 | 125 | 250 | 250 | 300 | 450 | ±170° | 90/-120° | 130/-65° | ±180° | ±120° | ±360° | 10 | 158 | 3.3 | |
BRTIRUS1820A | 1800 | 102 | 124 | 125 | 390 | 300 | 375 | ±150° | 50/-90° | 105/-60° | ±180° | ±95° | ±360° | ±0.06 | 20 | 220 | 3.7 |
BRTIRUS3050A | 3000 | 85 | 70 | 70 | 218 | 228 | 198 | ±170° | 65/-85° | 125/-65 | ±180° | ±125° | ±360° | ±0.1 | 50 | 650 | 12.7 |
BRTIRUS3511A | 3500 | 85 | 105 | 105 | 102 | 148 | 210 | ±170 | 57/-100° | -0.52 | ±180 | ±90 | ±360 | 110 | 1350 | ||
BRTIRUS4011A | 4000 | 70 | 70 | 70 | 109 | 148 | 210 | ±165° | 65/-85° | 100/-70° | ±180° | ±125° | ±360° | 100 | 1900 | 30 | |
