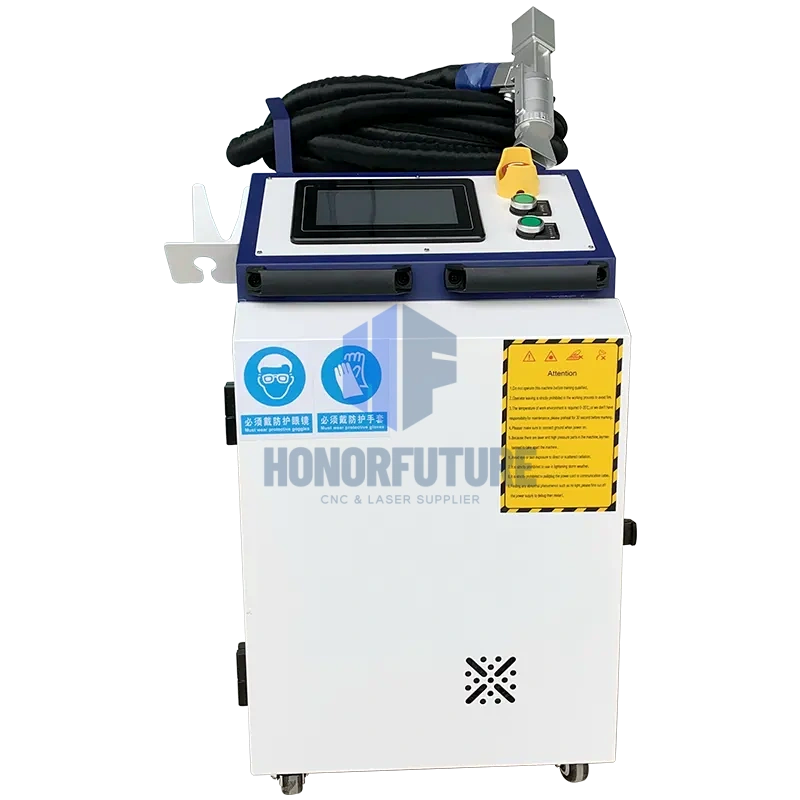

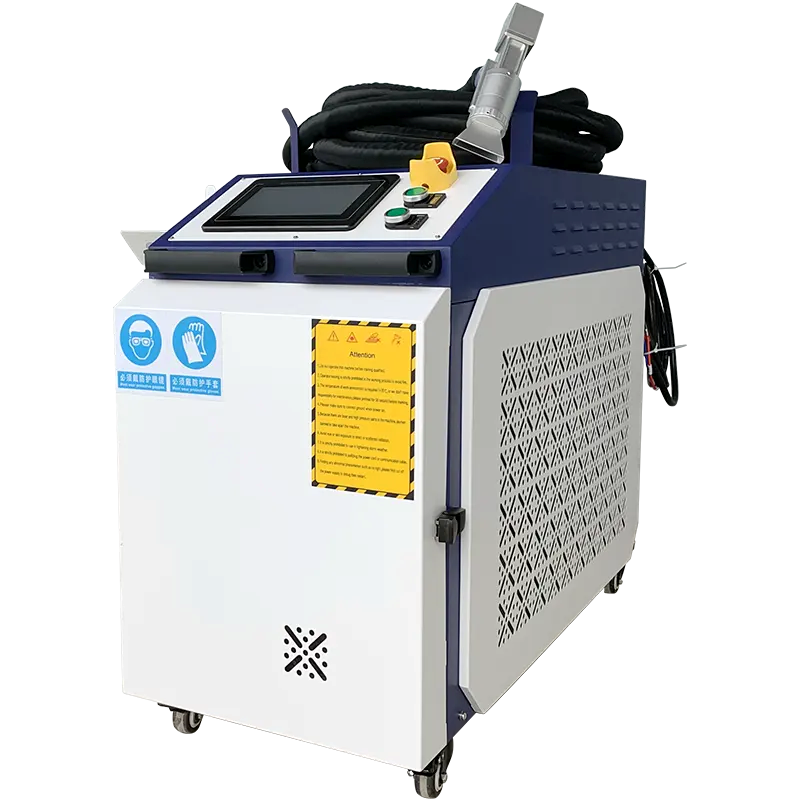

Laser welding machine 5 in 1
Selling Points
High precision: The handheld laser welding machine uses a laser beam for welding, which can achieve high-precision welding.
High efficiency: The handheld laser welding machine has the characteristics of fast welding speed and high efficiency.
Non destructive welding: The heat affected area of the laser beam is small, which can achieve non-destructive welding.
Strong welding adaptability: The handheld laser welding machine is suitable for welding various materials, including metal materials, plastic materials, etc.

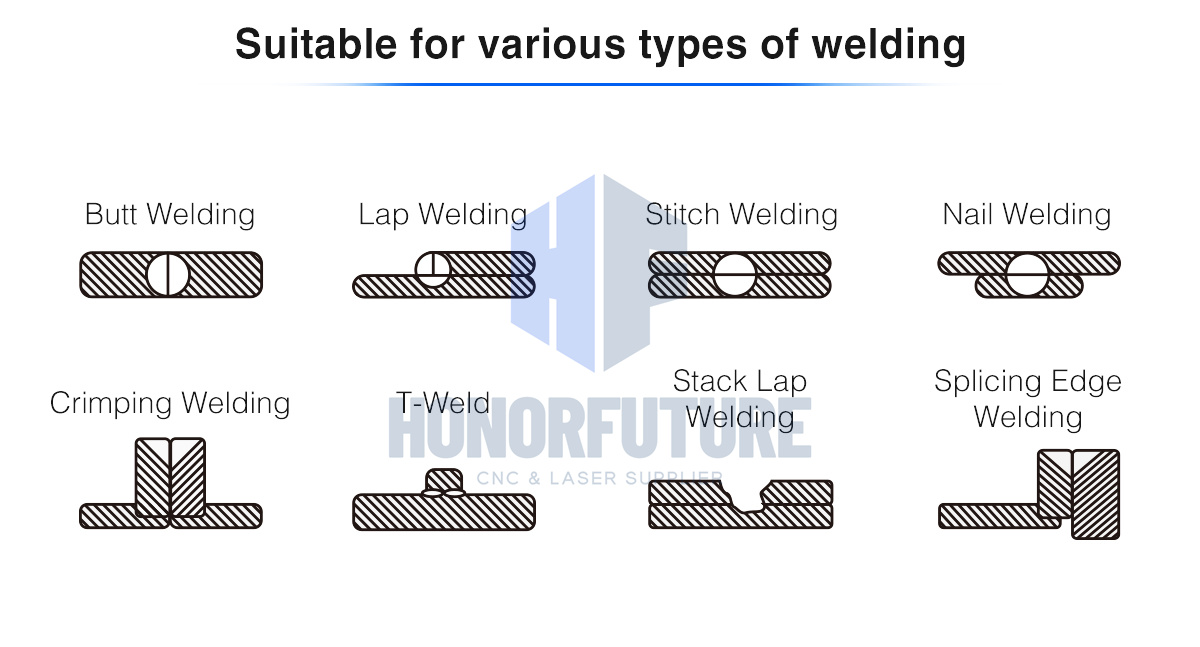

Multiple welding methods can be achieved, such as spot welding, wire welding, surface welding, etc., to meet different welding needs.
Environmental protection and energy conservation: No additional welding materials are required, and welding slag and exhaust gas will not be generated.
Products Parameter
Item No. | HFW | |||
Laser Power | 1500w | 2000W | 3000w | 6000w |
Laser Wavelength | 1080±5nm | |||
Pulse Energy | 1.5-20mJ | |||
Fiber Length | 8-10m (15m Optioned) | |||
Chille | S&A/Hanli/Xingguang | |||
Laser Gu | Relfar/Super/Au3tech | |||
Laser Cleaning Head Weight | 3kg | |||
Scanning Width | 10-80mm | |||
Voltage | 220V, 50/60Hz | 380V,50/60Hz | ||
Cooling Method | Water-cooling | |||
Working Temperature | 10-40℃ |
