Advantages
1. High-speed tool change: 12 tool changers, straight-row tool changers integrated under the gantry, or disc tool changers integrated next to the spindle. Either way, the equipment can quickly change tools without waiting.
2. Highly automated operating system: Taiwan LNC system is a highly automated, high-precision, and high-efficiency operating system; simple and easy to learn, powerful performance, high stability, the system has been iterated many times and continuously upgraded to meet the processing needs of different customers.
3. Heavy-duty welded bed: The bed is welded with high-thickness steel pipes, and strictly undergoes important steps such as welding casting, aging treatment, and mechanical processing; ensuring the high performance, stability, and ultra-long service life of the machine
4. High-quality accessories: The equipment uses well-known brands, such as BEST inverters, Leadshine servos, HQD spindles, etc.; high-quality accessories ensure the basic excellent quality of the equipment.
Technical parameter
Descriptions | Parameters | ||||
Model | HF1325-ATC | HF1530-ATC | HF2030-ATC | HF2040-ATC | Custom made |
Working area | 1220*2500mm | 1500*3000mm | 2000*3000mm | 2000*4000mm | Custom made |
Accuracy | ±0.03mm | ||||
Table Surface | Vacuum table (or T-slot Table, or T slot and vacuum table ) | ||||
Frame | Thicken steel Square Tube Heavy structure | ||||
X, Y Structure | 1.5M helical Gear and rack transmission, Linear Rail | ||||
Z Structure | Ball Screw, Linear Rail | ||||
Max. Rapid Travel Rate | 80000mm/min | ||||
Max. Working Speed | 45000mm/min | ||||
Spindle Power | 9kw ATC Spindle | ||||
Spindle Speed | 0-24000RPM | ||||
Drive Motors | Leadshine 1.5KW servo motor and driver(Yaskawa, Delta optional) | ||||
Working Voltage | 380V 3ph; 220V optinal | ||||
Command Language | G Code | ||||
Operating System | Taiwan LNC high level controller | ||||
Computer Interface | USB interface | ||||
Collet | ISO30 | ||||
Inverter | 11kw | ||||
Software | Type 3 /Artcam /Ucancam | ||||

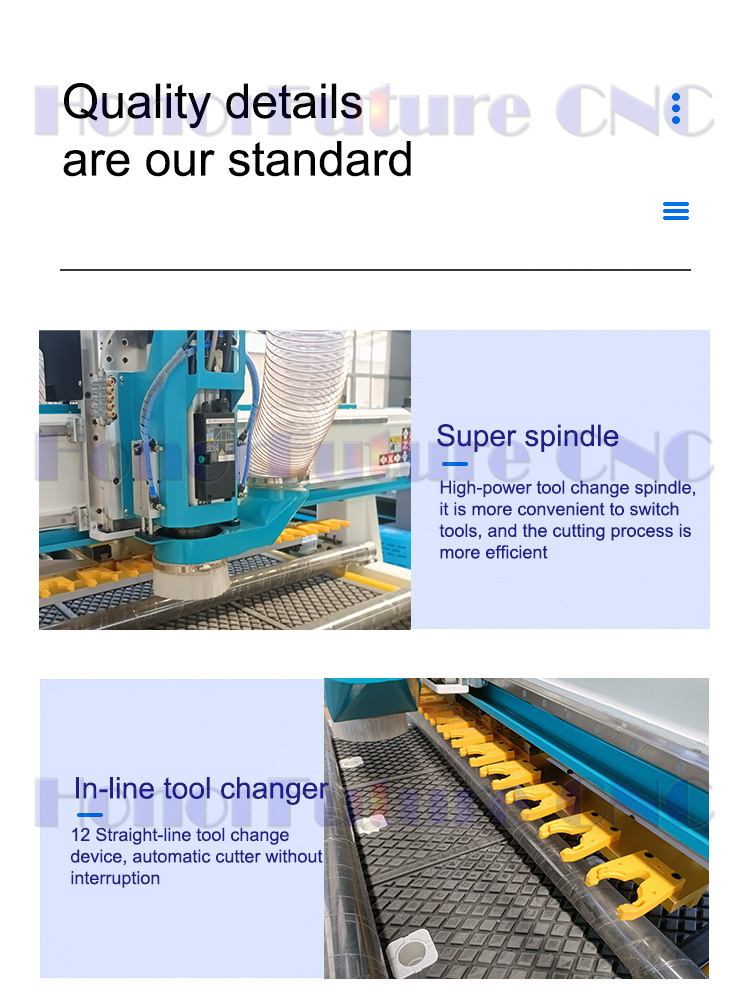

Quality details are our standard
Super spindle
High-power 9KW automatic tool change spindle, it is more convenient to switch tools, and the cutting process is more efficient.
In-line tool changer
12 Straight-line tool change device, install under the gantry, when work, it will move together with the gantry, automatically change cnc bits without interruption.

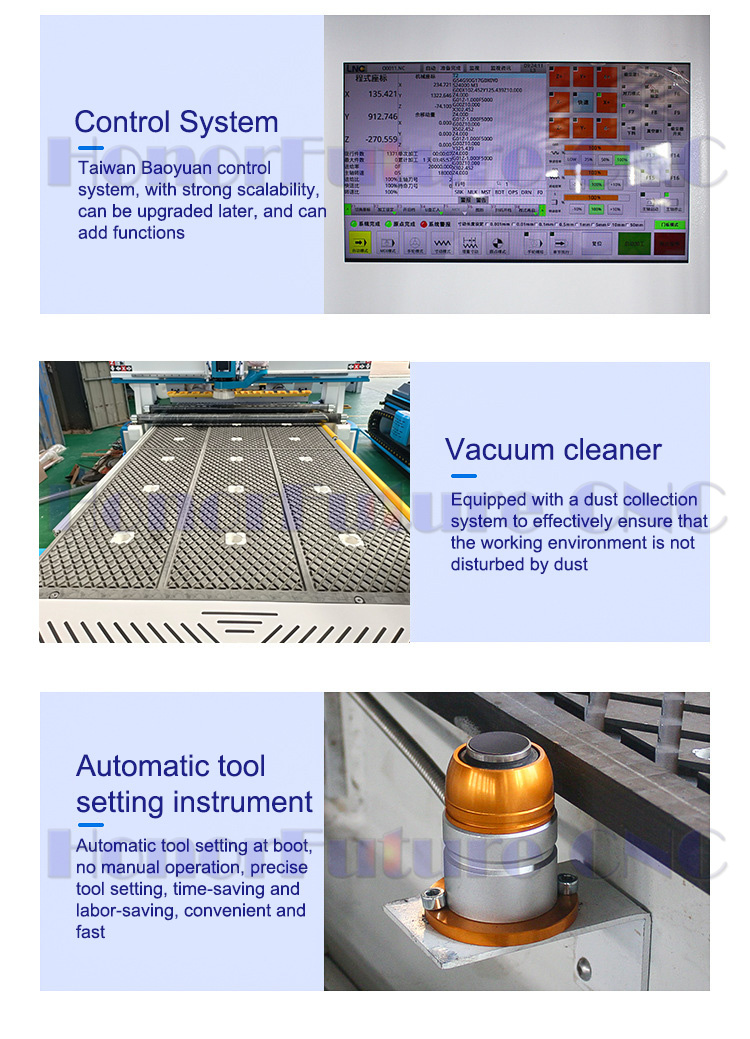

Control System
Taiwan LNC (Baoyuan) control system, with strong scalability. Could be upgraded later, and can add extra functions.
Vacuum cleaner
Equipped with a dust collection system to effectively ensure that the working environment is not disturbed by dust. Keep clean and protect worker's healthy.
* Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE, PEHD and other carbon mixed compounds.
* Decorate industry: Acrylic, PVC,MDF, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
* Metal processing: Aluminum, Copper, and many other soft metal cutting, milling, engraving.
1. Outside package: Standard marine export plywood case.
2. inner package: Stretchy film and plastic film for humidity.
3. We can package according to your requests.

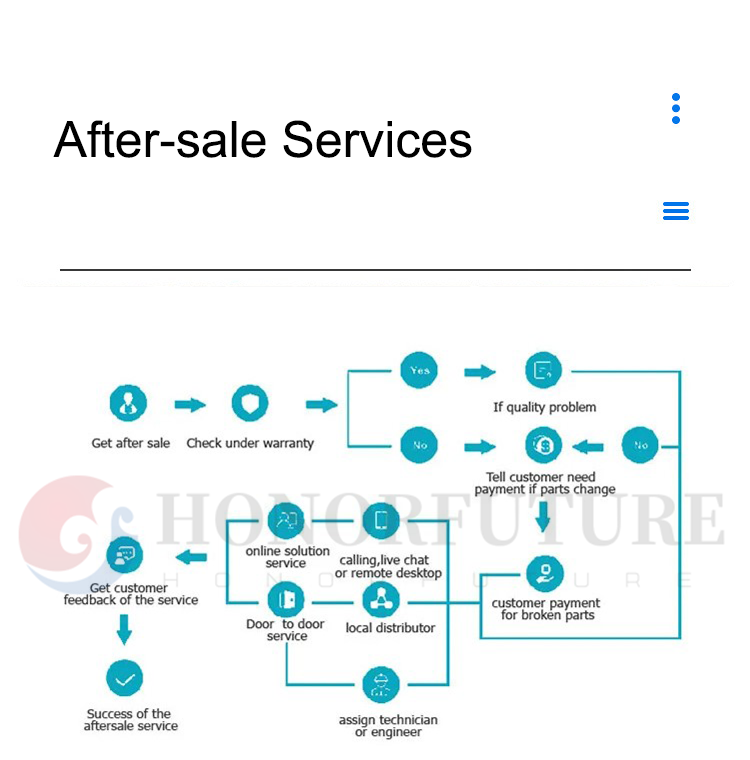

Guarantee
Technical support
