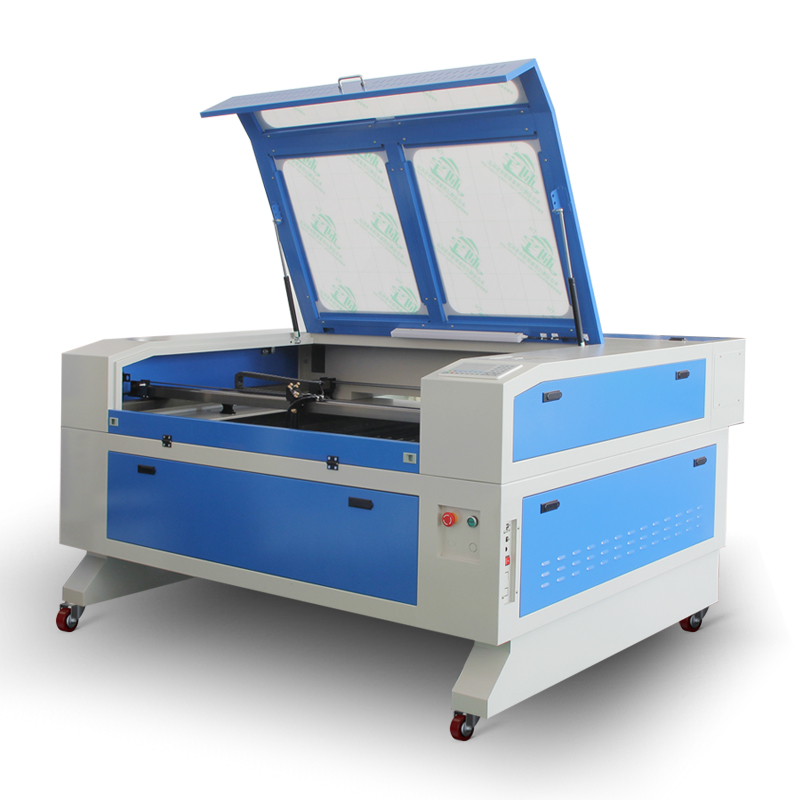

1390 laser cutting and engraving machine
HFC1390 Co2 laser engraving cutting machines equipped with enclosed laser tube, three wire straight rail, RUIDA or TROCEN control system, Industrial laser head, high power stepping motor.
This machine is equipped with RUIDA Control System,supports CorelDraw and Auto CAD and other advance software.
It must connect to computer with USB cable when you change the settings of files.
You can transfer the file with USB memory stick to the machine, or download it to the machine directly with USB cable from computer.
The machine front and back doors can open to accommodate larger materials.

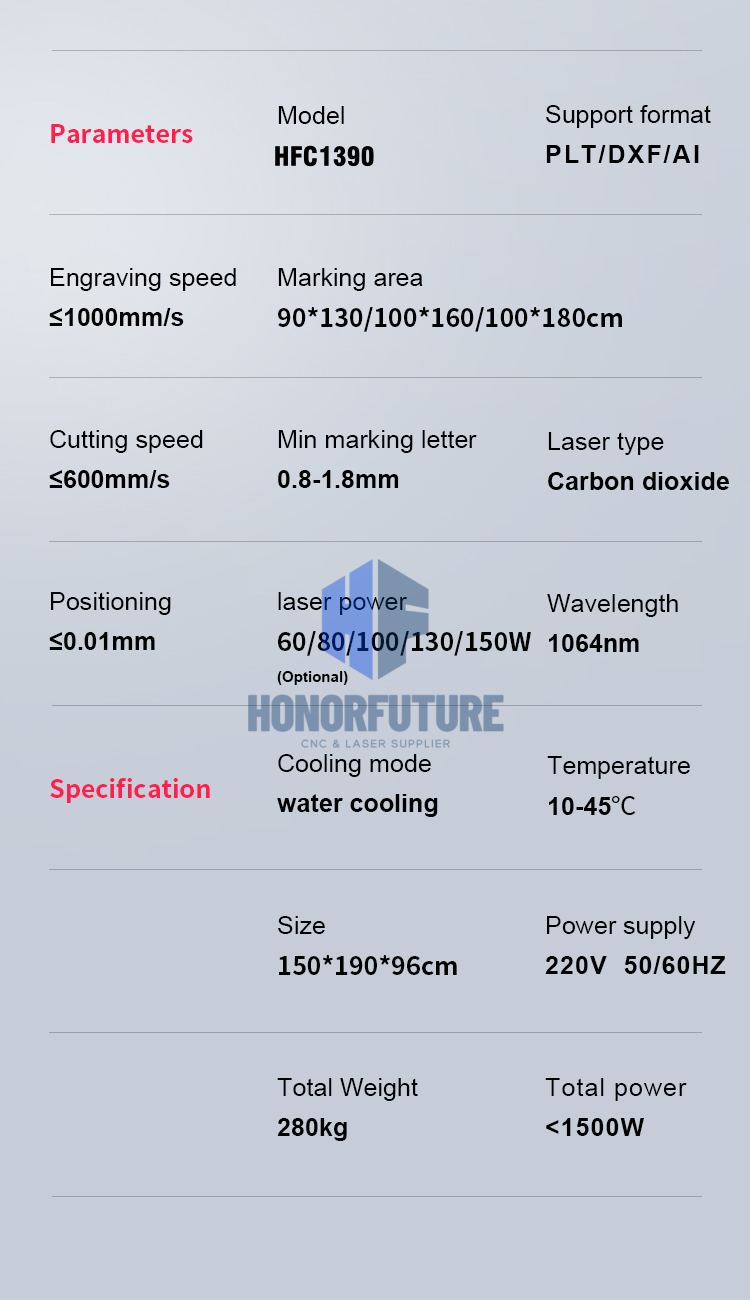

Model No. | HFC1390 |
Working Area | 1300x900mm |
Laser Power | 60W/80W/100W/150W |
Laser Type | C02 Sealed Laser Tube,Water-cooled,10.6μm |
Engraving Speed | 0-60000mm/min |
Laser Output | 1-100% Software Setting |
Reposition Accuracy | ≤0.01mm |
Power Supply | 220V/50HZ,110V/60H2 |
Operating Temperature | 0-45°C |
Operating Humidity | 5-95% |
Min.Shaping Character | English1.0x1.0mm |
Graphic Format Supported | PLT,DXF,BMP,AI,DST |
Software Supported | TAJIMA,CorelDraw,Photoshop,AutoCAD |
Driving System | Stepper Motor |
Cooling Mode | Water-cooling and Protection System |
Equipment Dimensions | 1450x1100x1070mm |
Net Weight/Gross Weight | 230KGS/300KGS |
Shipping Dimensions | 1500x1200x1300mm |

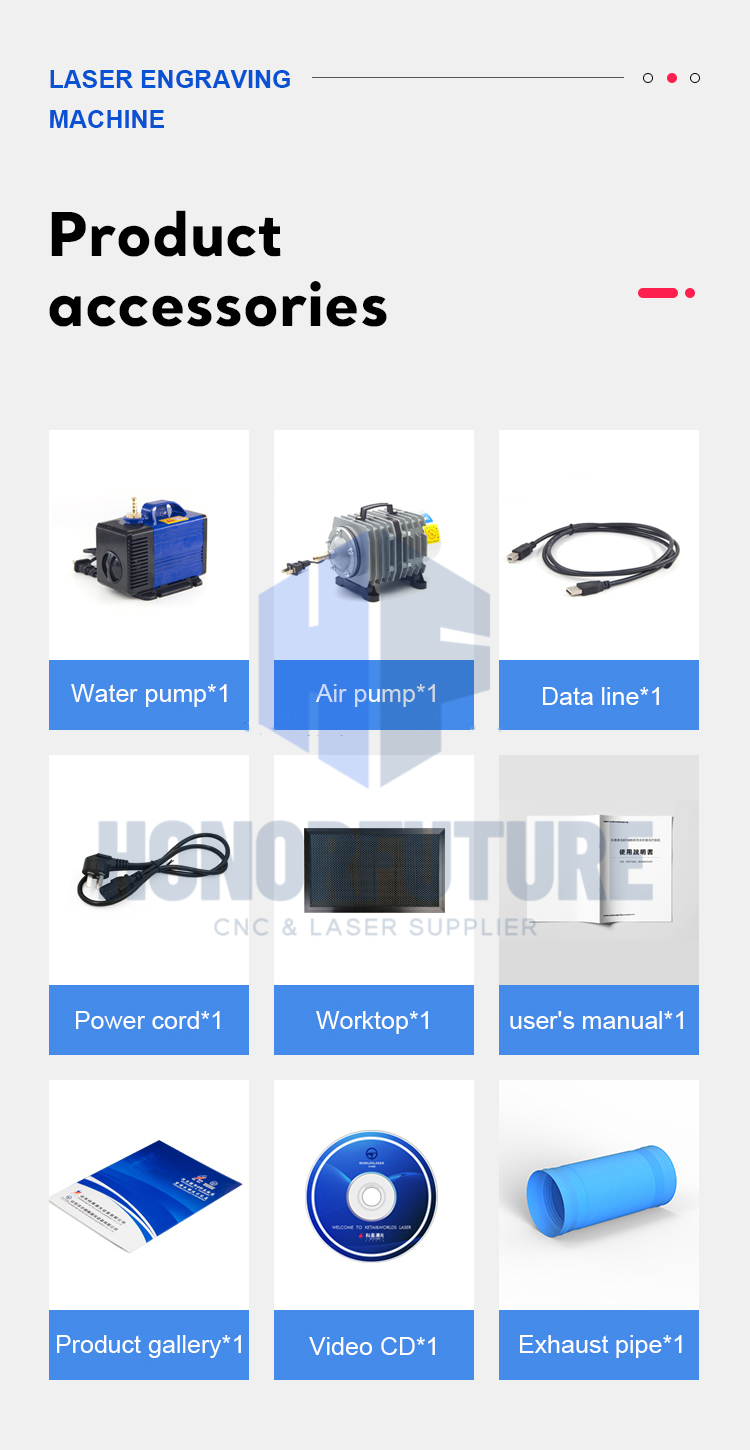

Optional Parts | Rotary Attachment,Red Light Pointer,up and down table |
