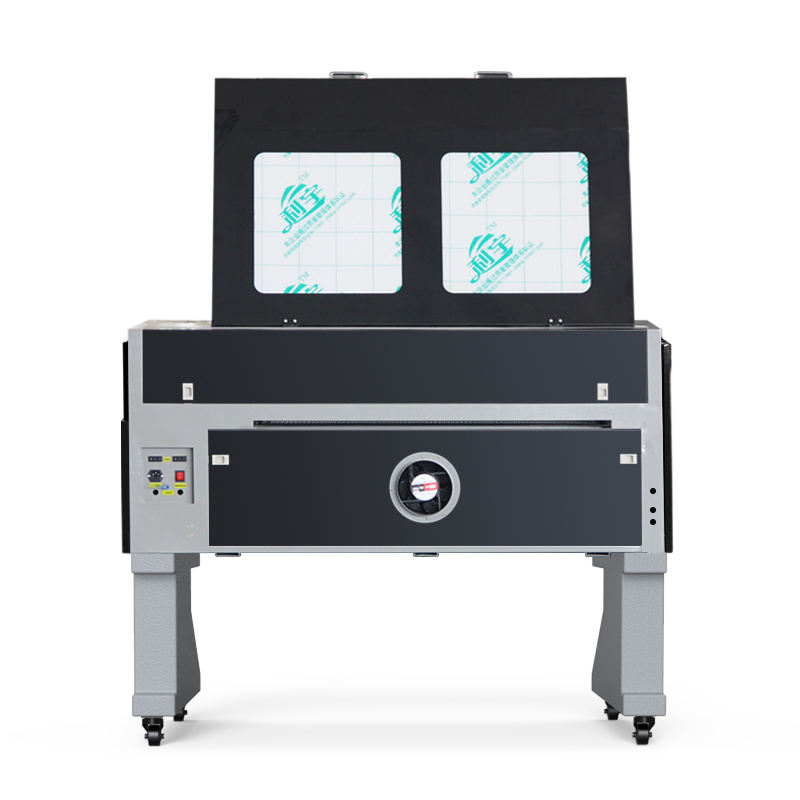

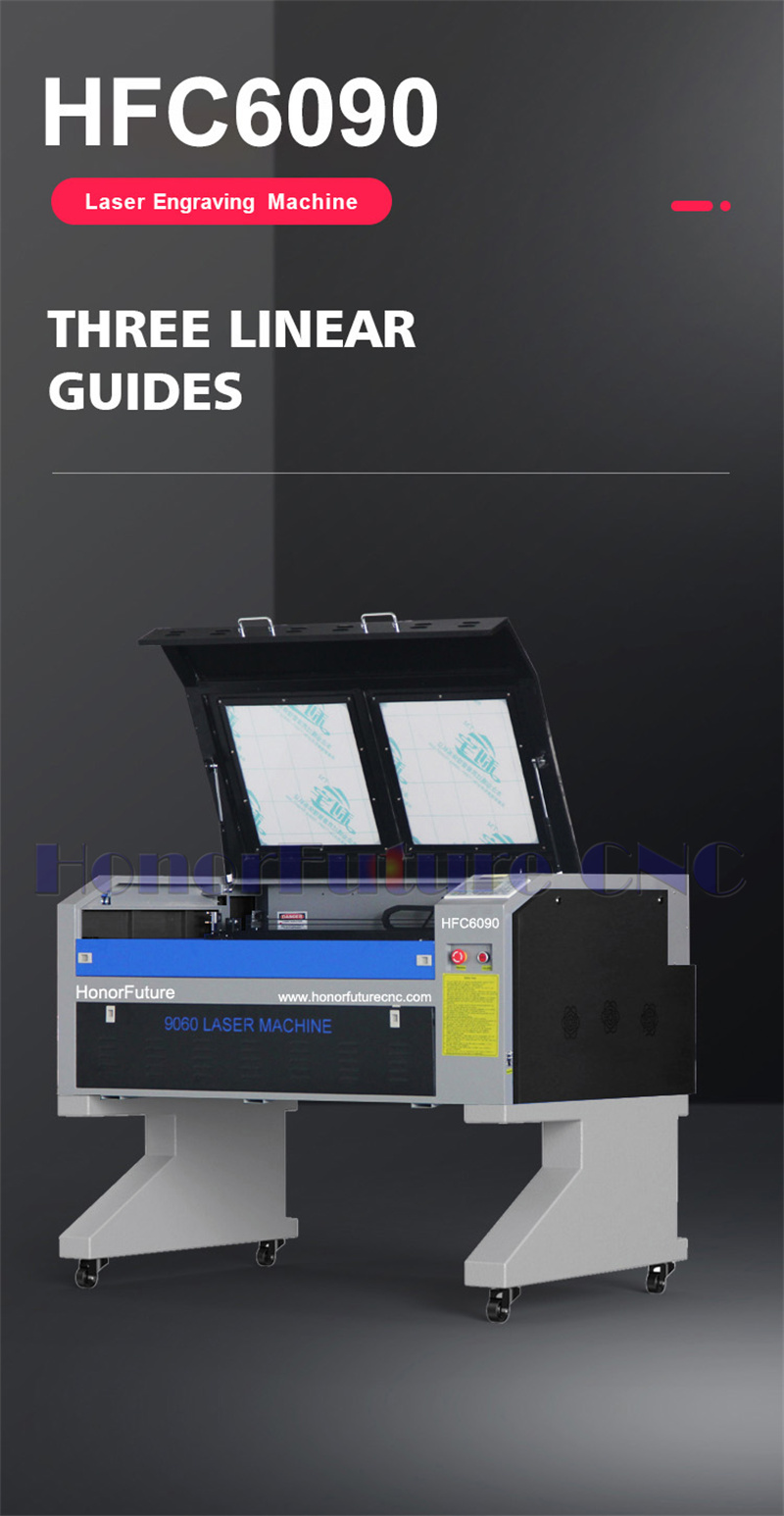

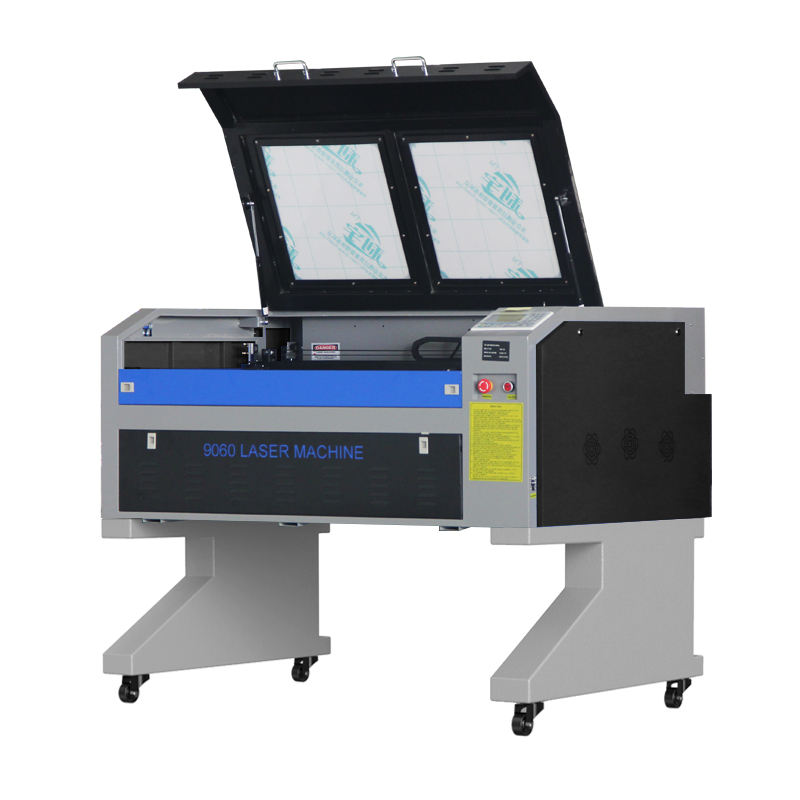

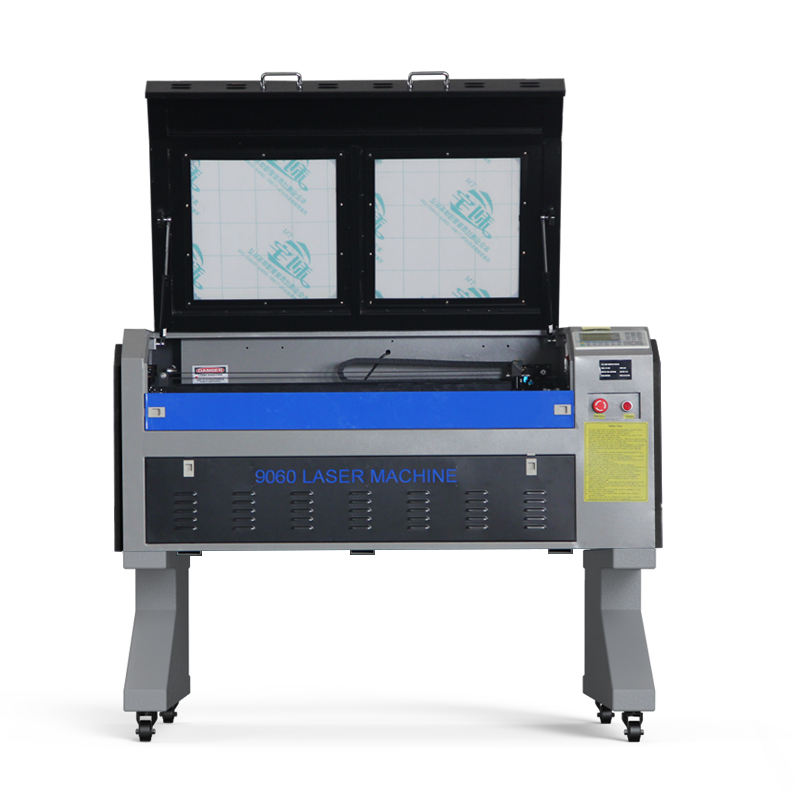

Ruida System Laser 9060/Laser 6090 Cutting Engraving Machine
1.Small and Medium machine size--very popular model.
2.Machine can add with 60W, 80W, 100W and 150W laser tube, which can be used for engraving and cutting work.

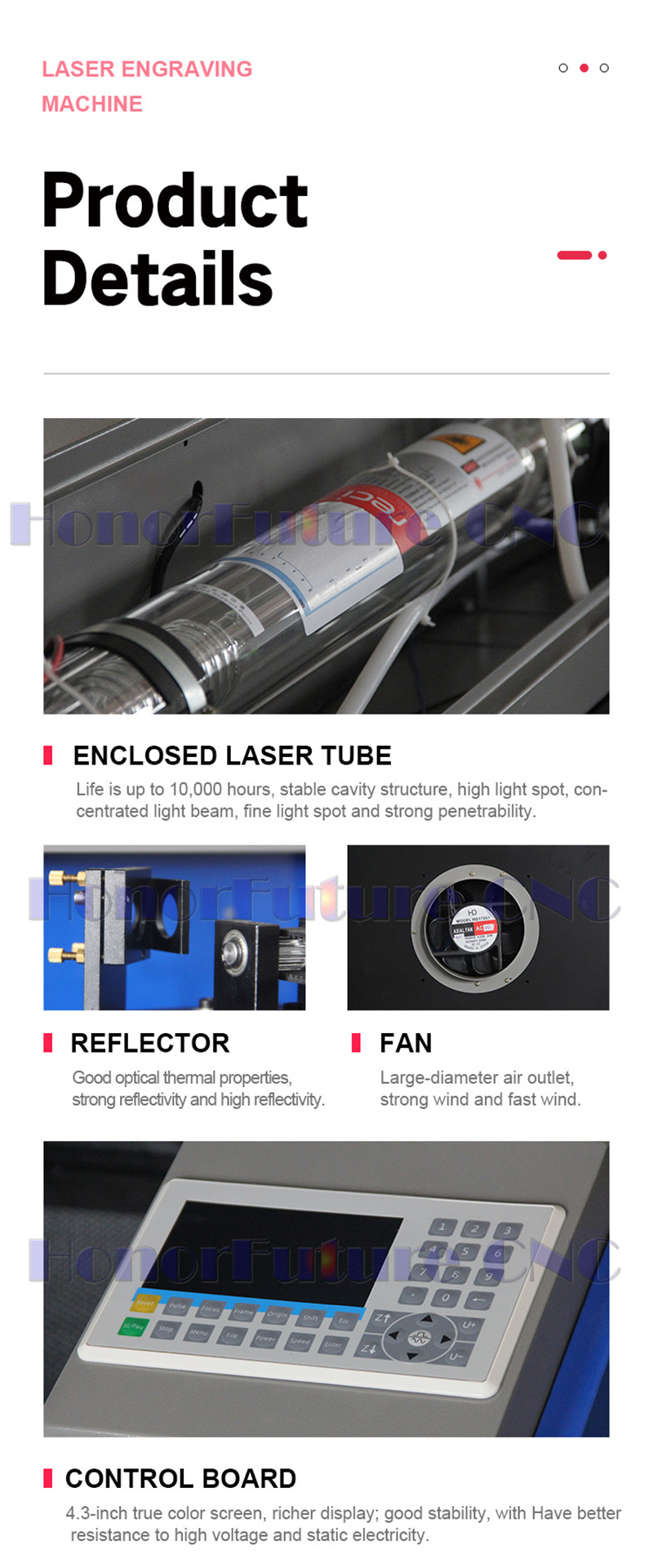

3.Laser Tube 80W, 100W and 150W all use EFR or RECI brand--popular laser tube brands in this in dustry.
4.Machine color is optional.
5.Transmit files directly in CorelDraw, AutoCAD etc.
Product Features

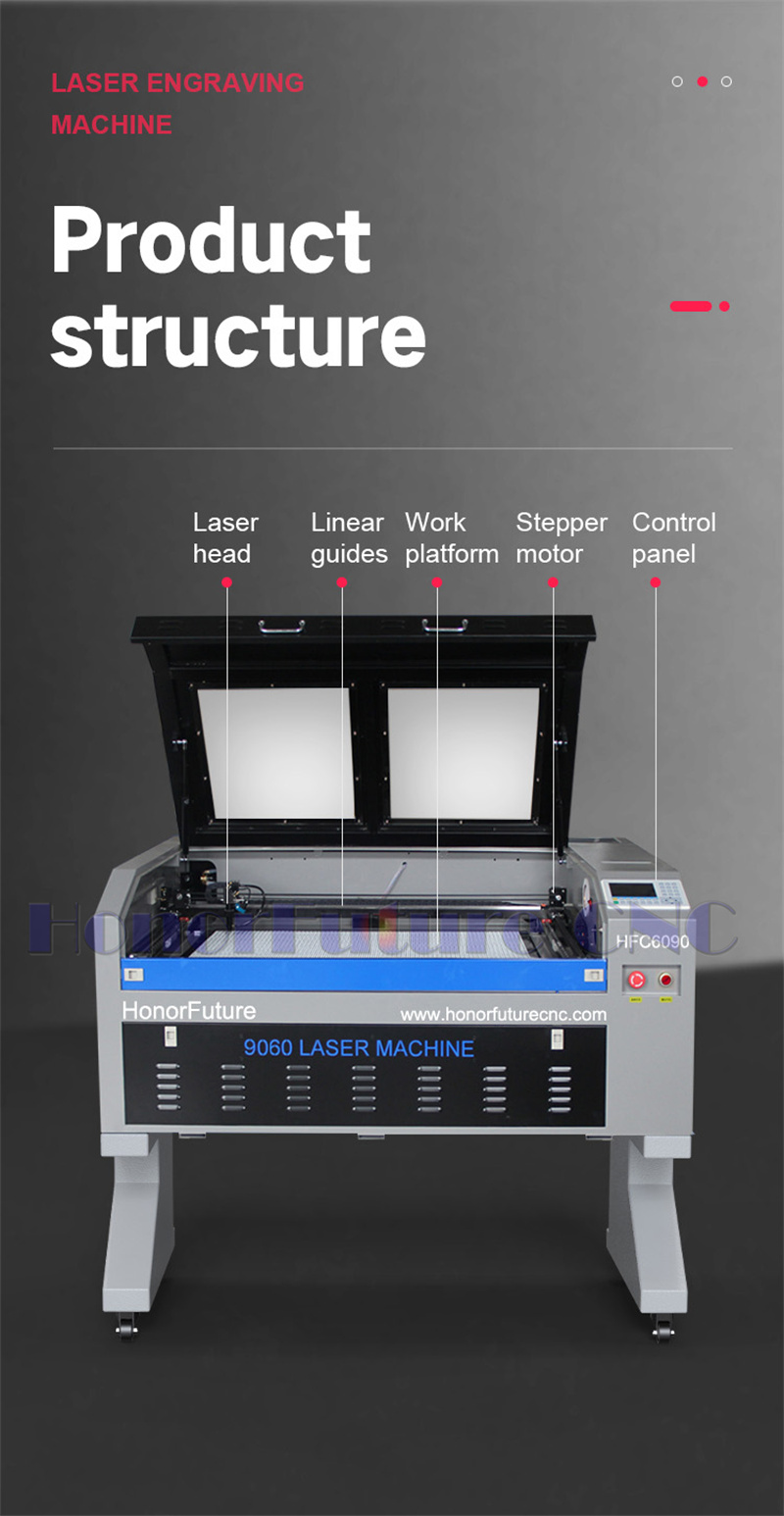

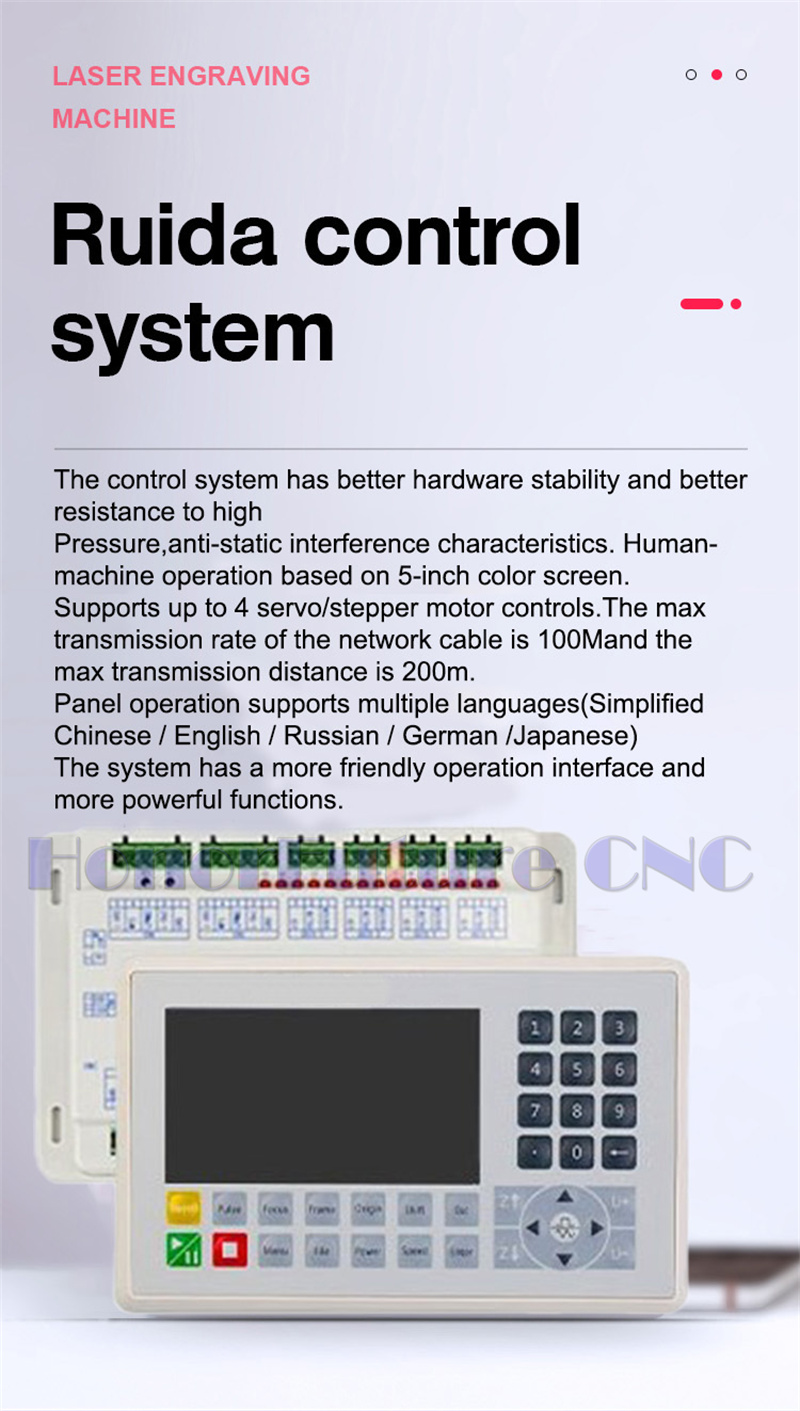

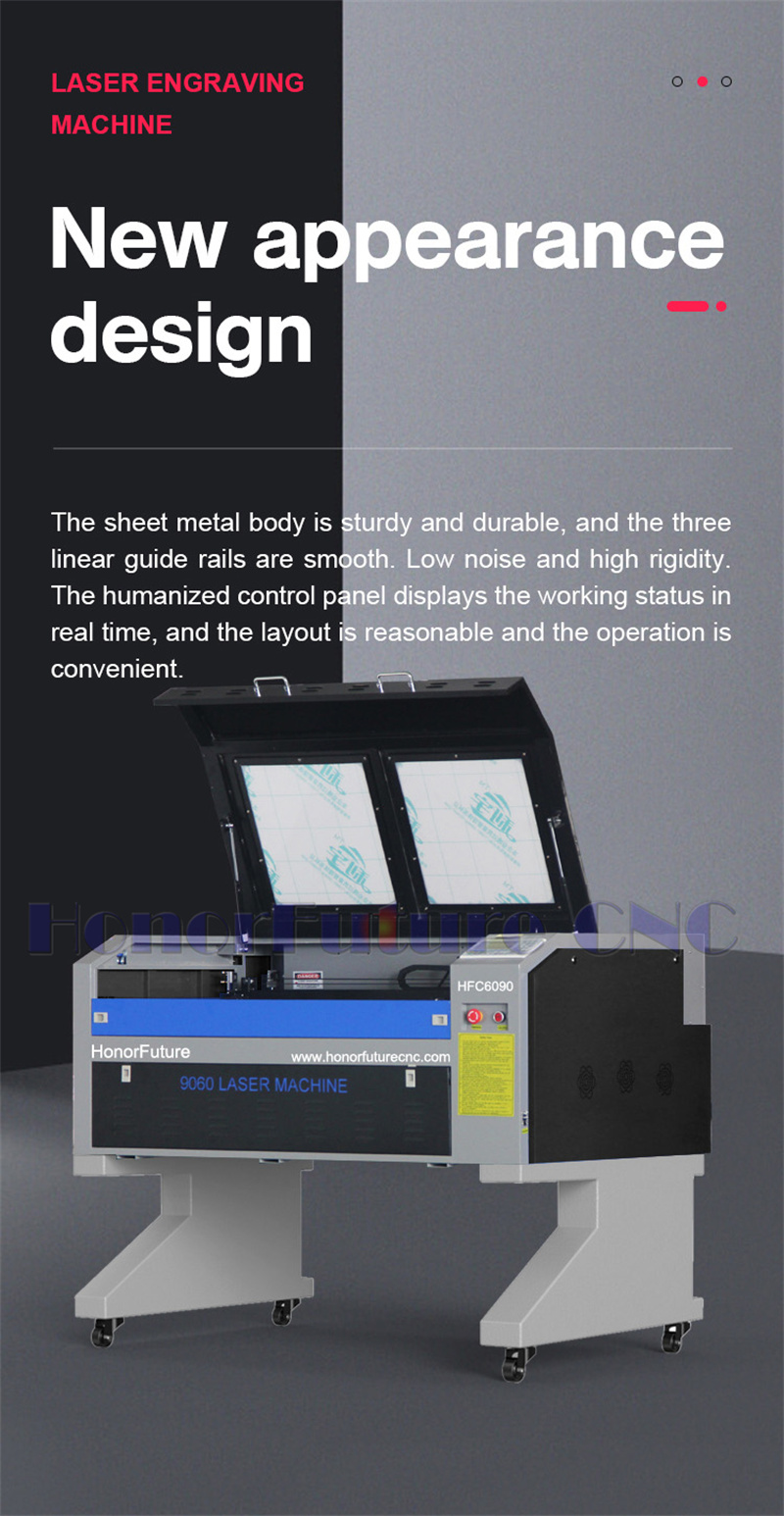

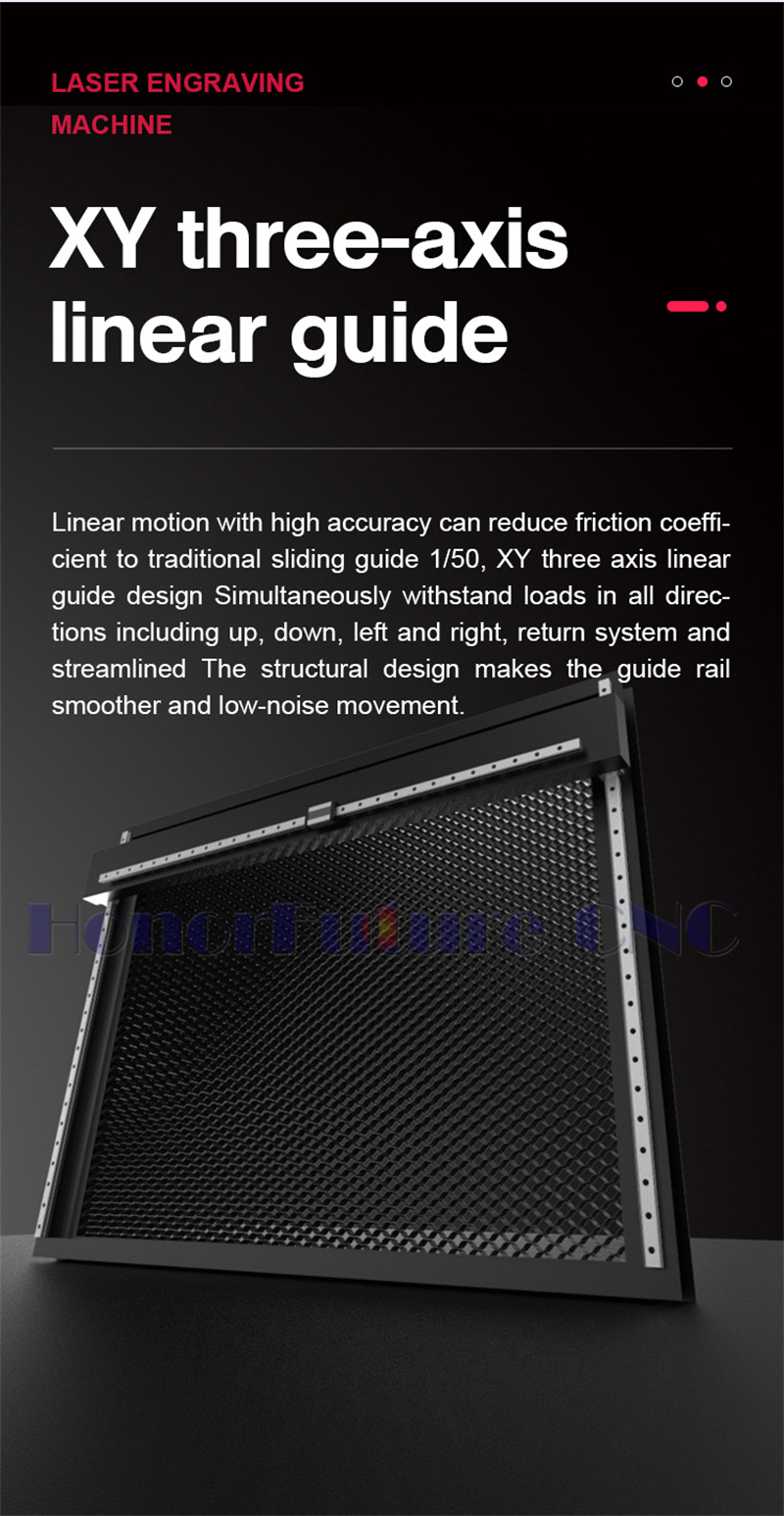

HonorFuture laser engraving and cutting machine are developed specially depend on the demand of the advertisement, decoration and related industries. The machine have multifunction of high engraving speed . The imported guide rail equipped to keep running stable, advanced DSP control system and three phase engine ,driver, have a good stability. High cutting precision the incision is smooth, no need to process again, good engraving effect ,high speed.

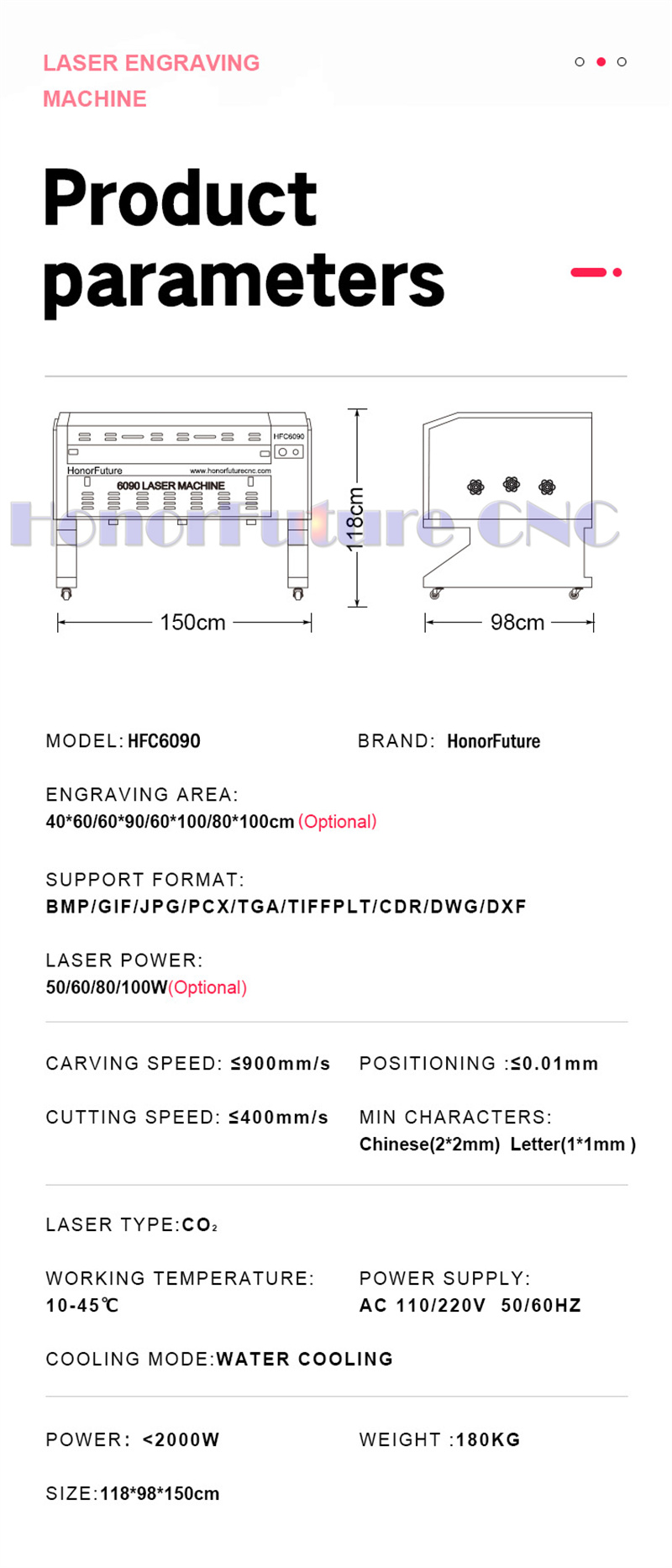

Specifications:
Model No. | HFC 6090 |
Working Area | 600x900mm |
Laser Power | 60W/80W/100W/150W |

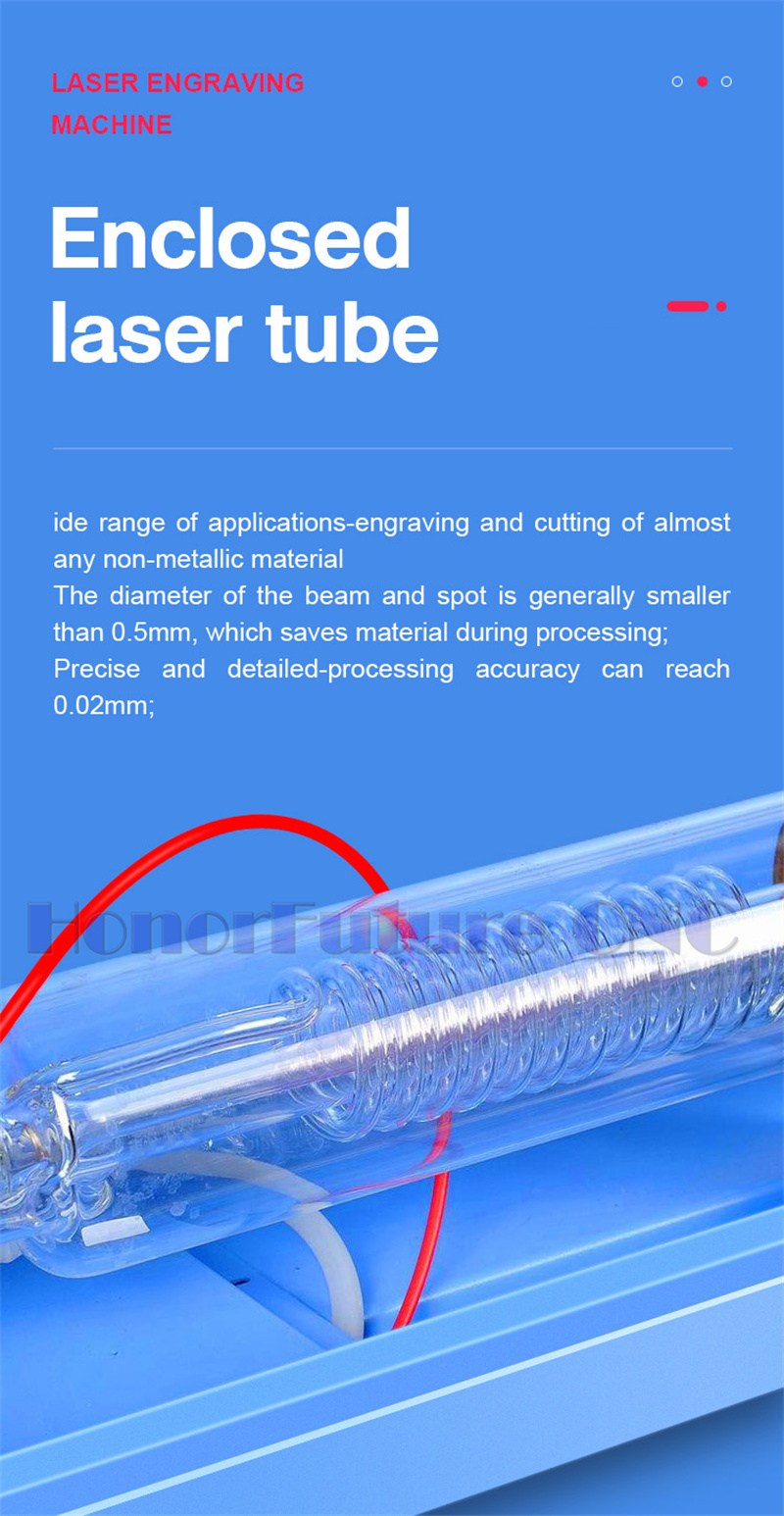

Laser Type | C02 Sealed Laser Tube,Water-cooled,10.6μm |
Engraving Speed | 0-60000mm/min |
Laser Output | 1-100% Software Setting |
Reposition Accuracy | ≤0.01mm |
Power Supply | 220V/50HZ,110V/60H2 |
Operating Temperature | 0-45°C |
Operating Humidity | 5-95% |
Min.Shaping Character | English1.0x1.0mm |
Graphic Format Supported | PLT,DXF,BMP,AI,DST |
Software Supported | TAJIMA,CorelDraw,Photoshop,AutoCAD |

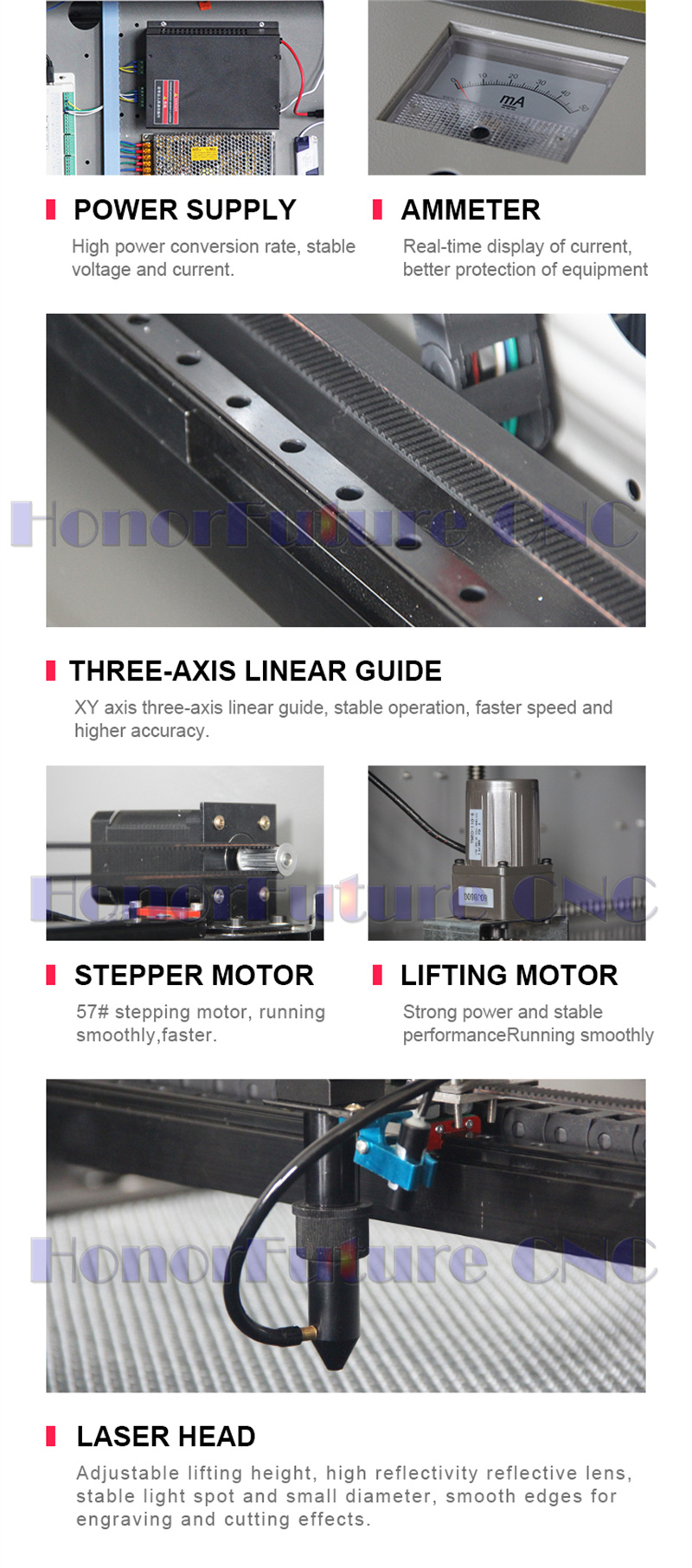

Driving System | Stepper Motor |
Cooling Mode | Water-cooling and Protection System |
Equipment Dimensions | 1450x1100x1070mm |
Net Weight/Gross Weight | 230KGS/300KGS |
Shipping Dimensions | 1500x1200x1300mm |
Optional Parts | Rotary Attachment,Red Light Pointer,up and down table |
Application Material
Materials: Nonmetal materials such as cloth.Filter cloth footwear,textile,garments,industrial fabric,carpets,toys,paper,leather,automotive interiors,car seat covers,pads,furniture seat cover ,acrylic and other nonmetal soft materials.
