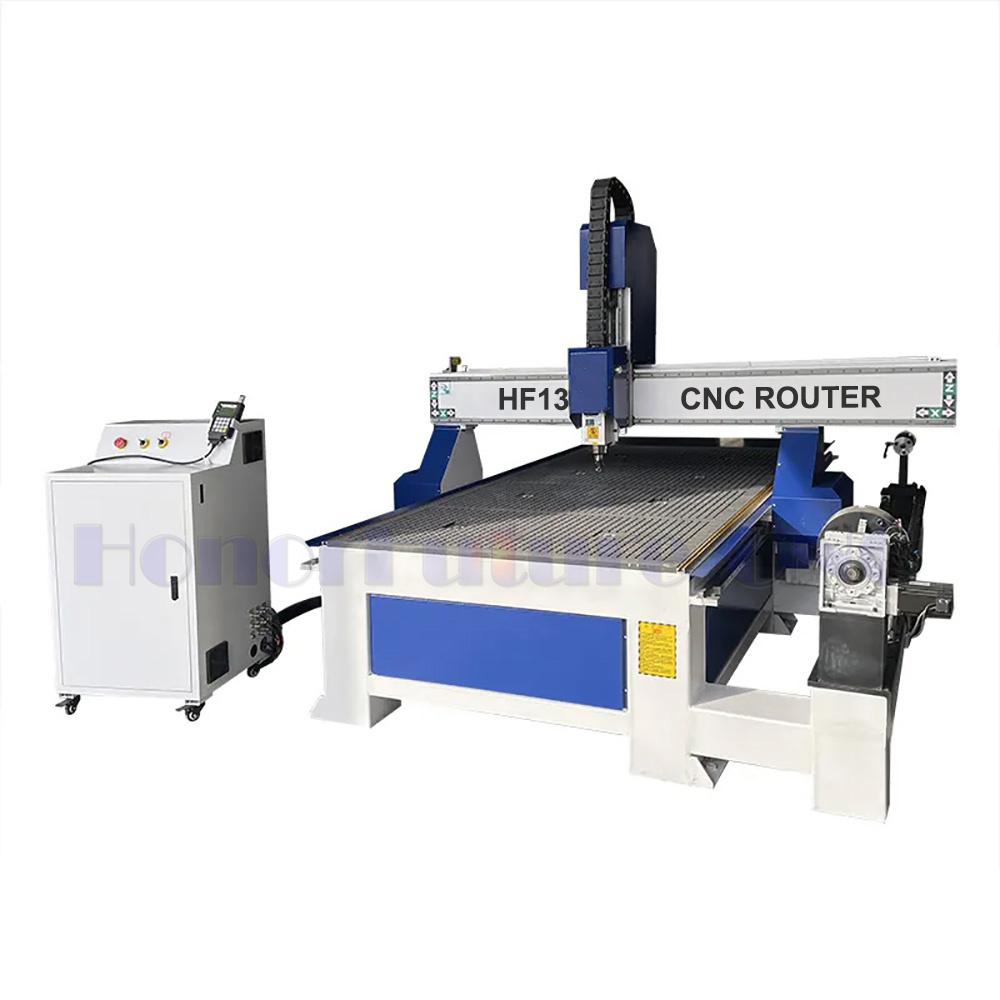

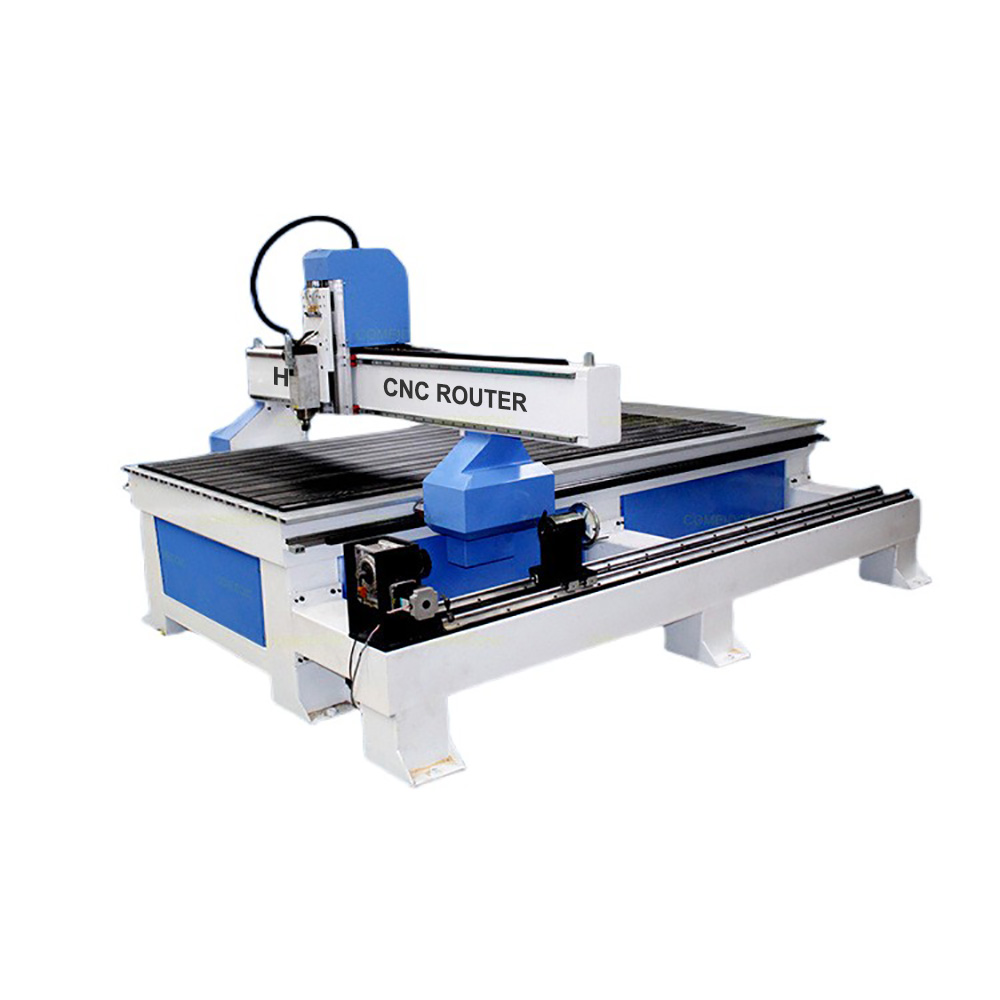

CNC Router With Rotary

copy Link

Facebook

Twitter

Type CNC Router

Brand HonorFuture

Model HF1325

Price 4000-8000

Get Quote

Detailed Info

Selling Points

1.With good quality machine parts, to make machine with high performance and durability.

2.Machine is with a big rotary device, can make different kinds of 3d sculptures, statues, figures, idols, columns, pillars etc.

3.Machine is with a flat table, can do deep flat works, like 3d reliefs, 3d molds, doors, wall decoration,furniture panels, acrylic words/letters,etc.

4.Adopt DSP control system, very easy to use and operate.

Products Parameter

Description	Parameter
Models	HF1325 CNC Router With Rotary
Working Area (XYZ)	Table: 13002500200mm
Max Moving Speed	30m/min
Max Engraving Speed	20m/min
Spindle Speed	0-24000rpm/min
Spindle Power	4.5kw water cooling (option:4.5 kw air cooling)
Transmission	X,Y Axis High Precision Rack Gears, Z Axis Ball Screw
Control System	DSP controller
Driving	Step motor (Option: Japan Servo Motor)
Compatible Software	Ucancam / ArtCam/TYPE3 (Origional version)
Command	G Code (plt, mmg, uoo, bmp)
Voltage	AC380V/50Hz
Weight	about 1200KG

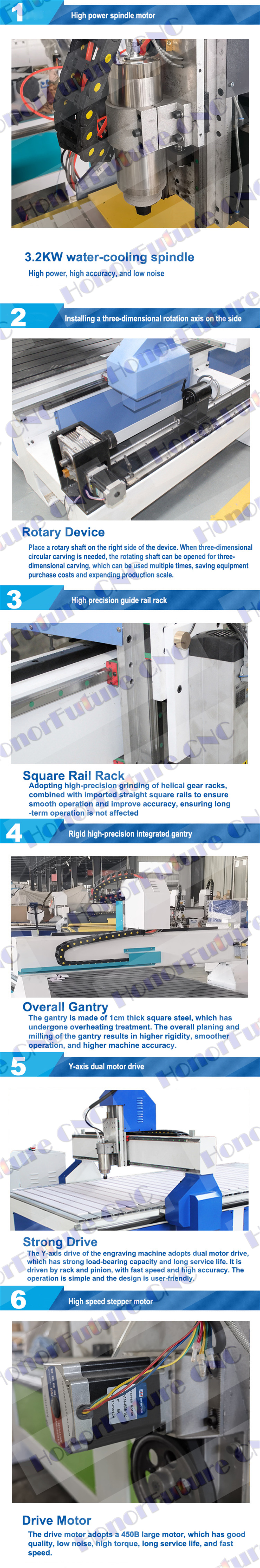

MACHINE PARTS

CNC Router With Rotary a'xi's

Applicable industry

Signs making such as signage, led signage, logo signage, custom signage, metal signage,commercial and residential signs, office signs, 3D LED sign boards, 3D LED signage, cuttingpanels, led sign, led lit box sign, 3D lettering, Neon sign, channel letters, Box signs.Furniture making such as wood doors, cabinet, kitchen, bed, table, desk, chairs, solid wooddoors, custom wood doors, front door, door manufacture, interior doors, exterior doors.windows.
Decorations 3D wall, wall paneling, exhibition displaysMusical instrument making such as guitar, piano, violin etc

Good Price Wood Lathe Rotary Axis Engraving Machine 4 Heads Cnc Router 4 Axis 5 Axis For Marble

Applicable materials

wood, MDF, acrylic, plastic, plaster, composite panel, composite boards, foam, EPS, styrofoam, fiberglass, aluminum board, density board, wave board, PVC, acrylic, crystal, lightmarble and other nonmetal materials and light metal materials.
