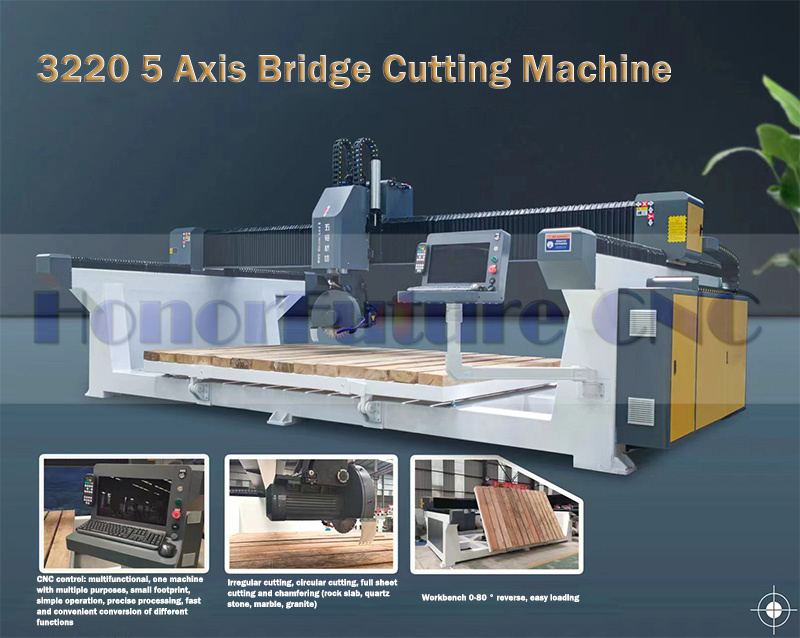

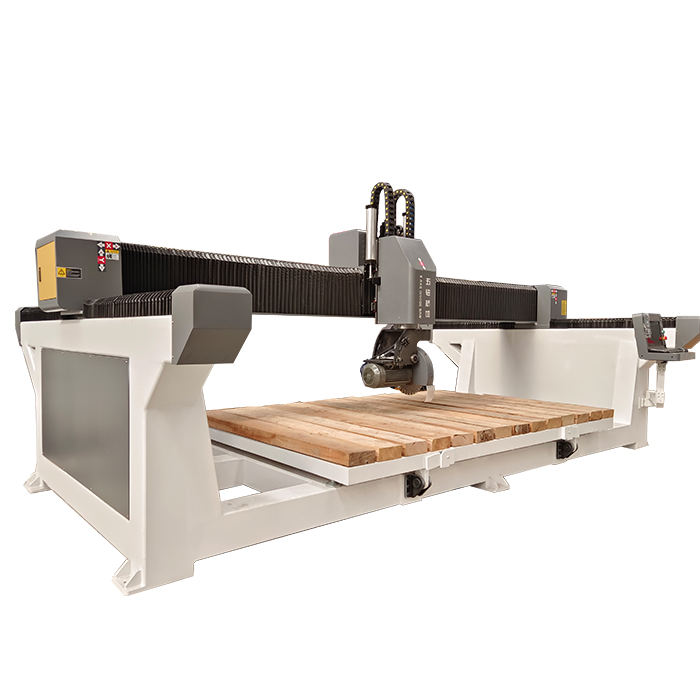

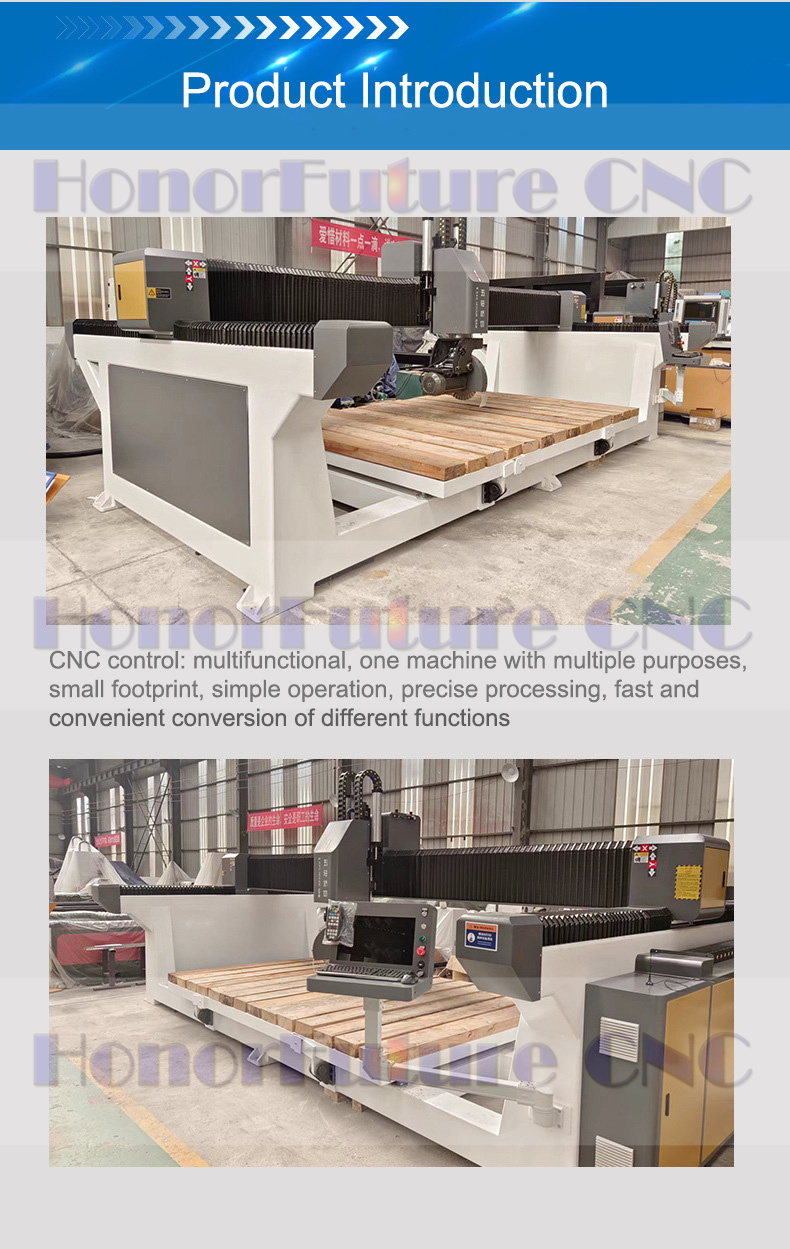

4 Axis 45 Degree Chamfer Automatic Marble Granite Stone Cutting Granite Bridge Saw Machine for Cutting Slabs
It adopts PLC system and Human-machine interface, combined with high precision magnetic ruler and infrared device, uses inverter to control left-right feeding, adjusts the speed according to the stone material. It uses hydraulic lifting system, main spare parts adopt imported good-quality materials, eg: Schneider brand, Omron brand; the whole machine is featured with high cutting efficiency, high slicing precision, flatness of plate after cutting, high stability, easy-operating.
Technical Parameters | |

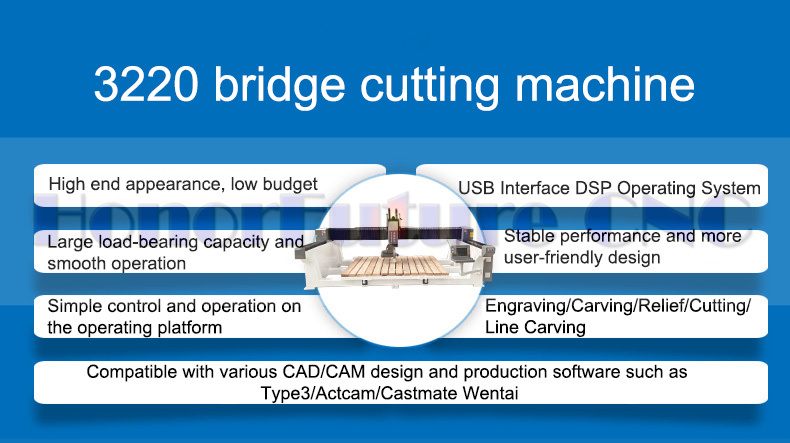

Name | HF3220 bridge saw stone cutting machine |
Working area | 3200*2000mm |

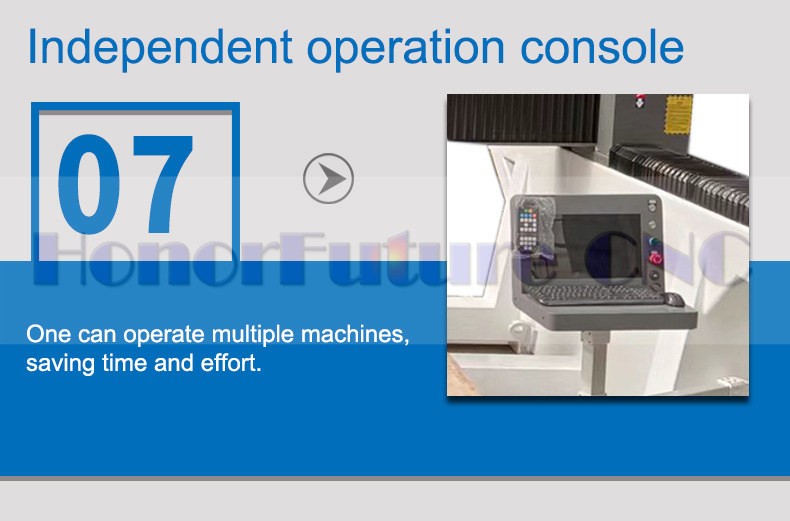

Control system | Hand touch screen system |
Diameter of blade | 350mm-450mm |

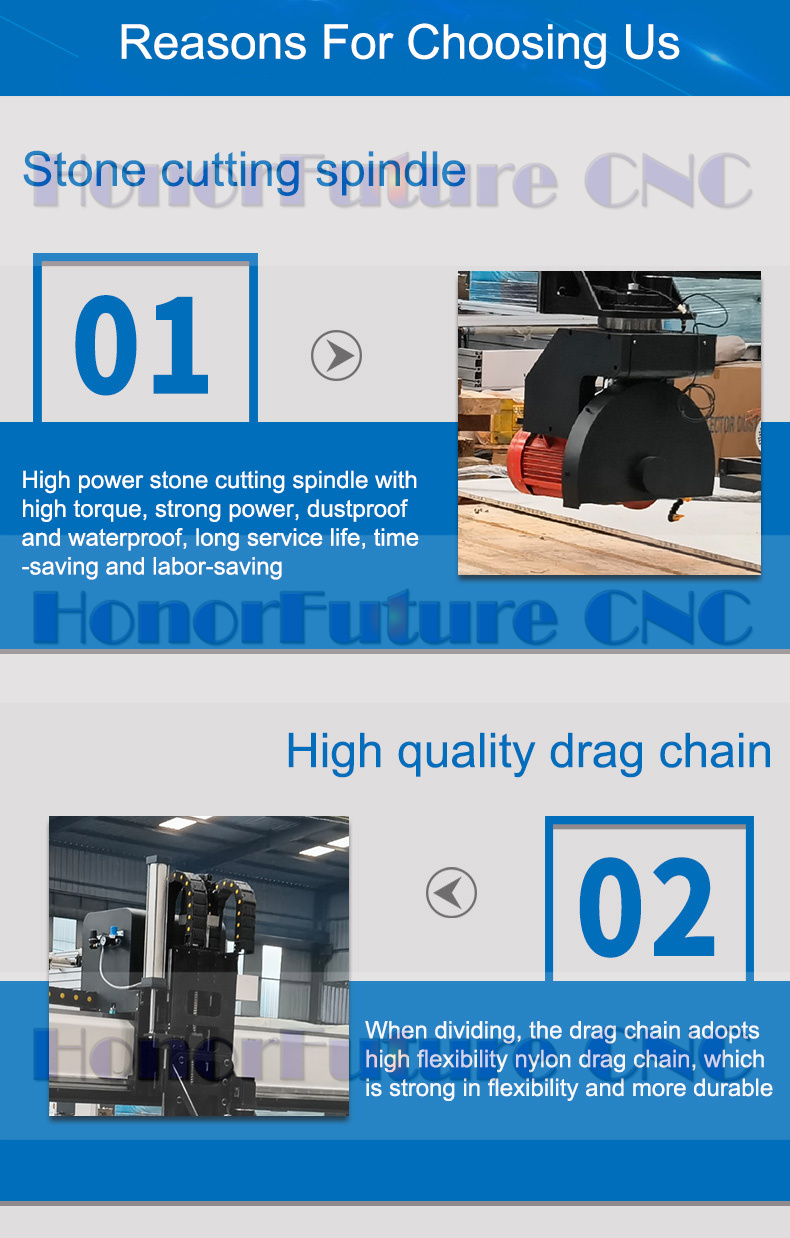

Blade motor power | 11KW |
Working voltage | 380V/50HZ |
Machine head | automatically flips 0-45 degrees |
Drive motor | Dongling 1.5KW servo motor |
transmission | 30 high-precision guide rail super heavy flange slider |
Reducer | Nippon Shinbao high-precision reducer |
A axis rotation angle | 0°-90° |
C axis rotation angle | 0°-360° |
Table Tilting Degree | 0°-80° |
Cutting thickness | 80mm |
Infrared | Equipped with a laser infrared probe to display the cutting path |
lubrication system | Automatic lubrication system |
Overall size | 5400*2200*2250mm |
Gross weight | 3500KGS |
